Industrial filtration systems require high permeability, mechanical strength, thermal stability, and consistent performance under continuous operation. Mesh, wire mesh, and sintered wire mesh filter cartridges are designed for demanding environments such as chemical processing, water treatment, metallurgy, and high-temperature gas filtration.

A sintered mesh filter is formed by bonding multiple layers of stainless steel wire mesh through a controlled sintering process, creating a rigid porous structure with stable pore geometry. It provides high filtration efficiency, stable permeability, and long service life under pressure.These filters are widely used where conventional polymer or single-layer mesh filters fail, offering better resistance to deformation, corrosion, and clogging.Perforated plate composite mesh cartridges combine perforated metal plates with multi-layer mesh and sintered wire mesh into a reinforced filtration structure for high-pressure applications.

The perforated plate provides structural support, while the mesh layers ensure stable filtration and permeability. With sintering, the structure becomes rigid and suitable for water treatment, chemical processing, metallurgy, and high-temperature systems.

These cartridges are ideal for harsh environments where standard mesh filters fail due to collapse or unstable pore structure.

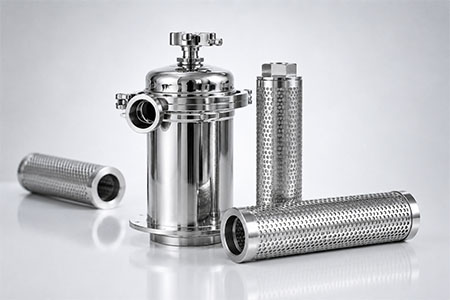

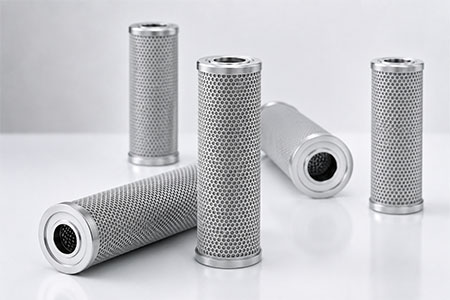

Perforated Plate Composite Mesh Cartridges
Perforated Plate Composite Mesh Cartridges
Perforated Plate Composite Mesh Cartridges

Engineering Validation Through Structural Design & Performance Optimization

Perforated plate composite mesh cartridges are engineered to achieve a balance between mechanical reinforcement and controlled filtration behavior, and their performance is validated through structural design principles rather than simple parameter listings.

In real industrial systems, engineers evaluate these filter elements based on how effectively the perforated plate supports load distribution, how the mesh layers stabilize particle separation, and how the overall structure maintains consistent permeability under continuous flow conditions.

The combination of perforated metal and multi-layer mesh creates a filtration system that performs reliably under:

  • High differential pressure environments
  • Long-term continuous operation
  • Cyclic thermal and hydraulic stress

From an engineering standpoint, performance validation focuses on:

  • Stability of pore geometry under load
  • Flow consistency across the filter surface
  • Resistance to structural deformation over time
  • Efficiency retention after repeated cleaning cycles

This makes perforated plate composite mesh systems suitable for critical industrial applications where filter failure or performance drift is not acceptable, especially in chemical processing, water treatment, and high-temperature separation systems.

Get in Touch Now

Technical Performance & Structure Analysis

The core engineering advantage of perforated plate composite mesh cartridges lies in their hybrid structural design.

A perforated plate provides a rigid load-bearing skeleton with high open area efficiency, while the mesh layers and sintered wire mesh handle fine particle separation. This combination ensures that the filtration medium remains stable even under fluctuating pressure conditions.

In sintered configurations, multiple layers of wire mesh are diffusion-bonded at contact points, forming a unified porous structure known as sintered wire mesh. This eliminates internal movement between layers, significantly improving structural reliability.

Key engineering functions include:

  • Perforated metal plate → structural support and pressure resistance
  • Mesh layers → graded filtration and particle retention
  • Sintering process → permanent bonding for mechanical stability

From a supplier engineering perspective, precise control of mesh tension, perforation geometry, and sintering temperature is critical. Any inconsistency directly impacts permeability uniformity, pressure drop stability, and service life.

Perforated Plate Composite Mesh Cartridges

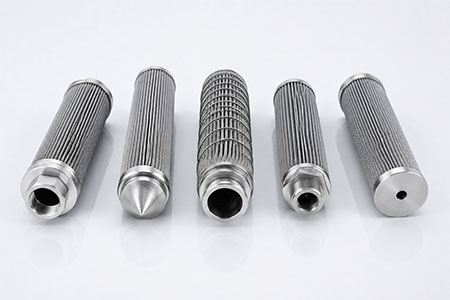

Sintered Pleated Filters

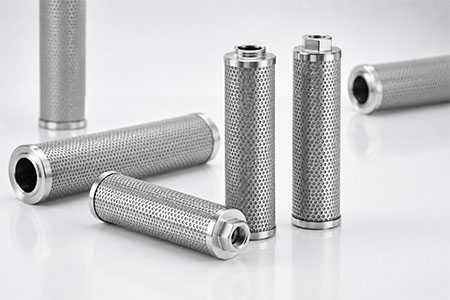

Perforated Plate Composite Mesh Cartridges

Filtration Efficiency & Material Behavior

Filtration efficiency in composite systems is determined by how fluid interacts with the layered filtration structure. In perforated metal-supported designs, the perforated plate provides a rigid mechanical backbone that ensures structural stability, while the mesh layers deliver controlled particle separation with consistent pore distribution. When combined with sintered mesh technology, the structure becomes more stable, preventing deformation and maintaining reliable permeability under pressure fluctuations. This integrated architecture enhances particle capture performance, reduces the risk of pore collapse during high-flow operation, and improves long-term filtration consistency. At the same time, it maintains a relatively low pressure drop compared with loosely assembled multi-stage filtration systems, making it suitable for continuous and high-demand industrial processes where both efficiency and structural reliability are required.

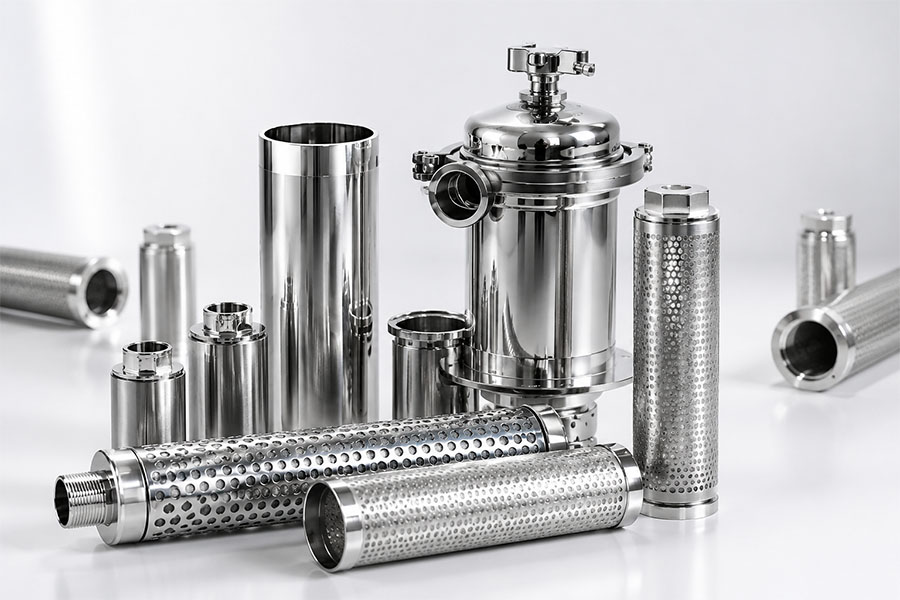

Perforated Plate Composite Mesh Cartridges

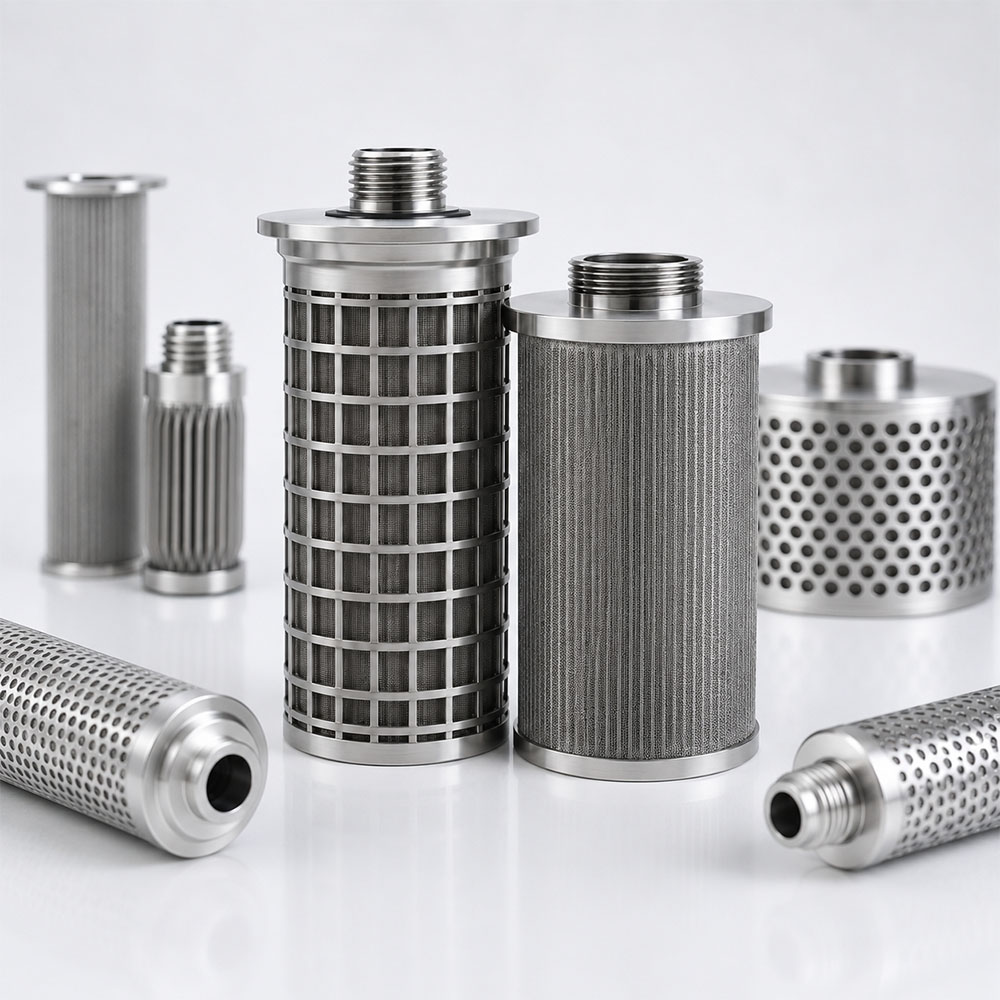

Perforated Plate Composite Mesh Cartridges

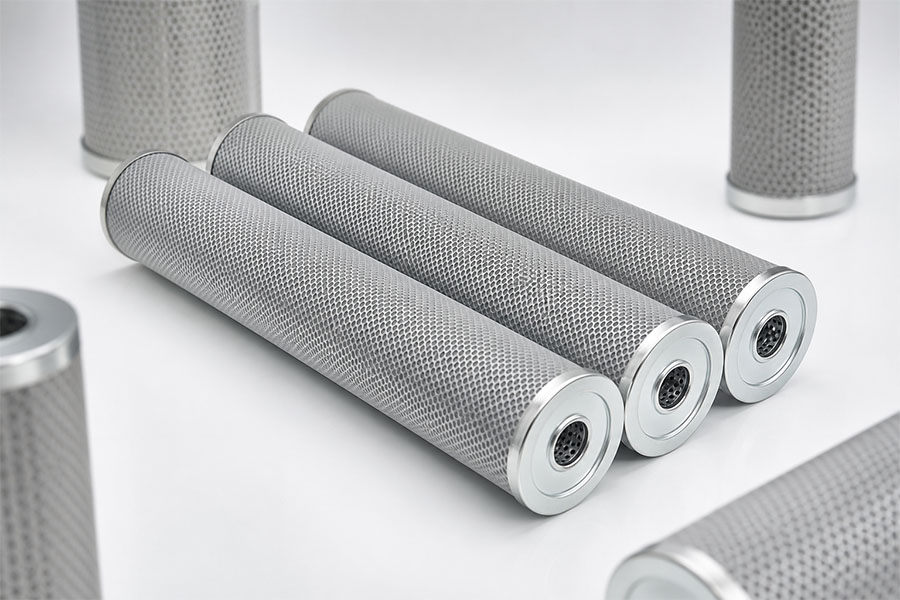

Perforated Plate Composite Mesh Cartridges

Cleaning, Maintenance & Reusability

Industrial filtration systems require media that can withstand repeated regeneration cycles without performance degradation.

Perforated plate composite mesh cartridges support multiple cleaning methods:

  • Backwashing: Reverse flow removes trapped particles
  • Chemical cleaning: Suitable for chemical and corrosive environments
  • Mechanical cleaning: Ultrasonic or surface brushing for deep regeneration

Because the structure is mechanically reinforced, it resists collapse and maintains pore geometry even after repeated cleaning cycles.

This makes it significantly more cost-efficient than disposable polymer filters in long-term industrial operation.

Industrial Application Scenarios

Perforated plate composite mesh cartridges are widely used in:

  • Water treatment systems: Pre-filtration and fine particulate removal
  • Chemical processing plants: Filtration of corrosive and reactive fluids
  • High-temperature systems: Gas and liquid filtration under thermal stress
  • Precision manufacturing systems: Contamination control in sensitive production lines

Performance varies depending on operating conditions:

  • High-pressure systems require reinforced perforated support layers
  • High-temperature environments demand stainless steel or alloy materials
  • Fine chemical filtration requires tighter mesh grading and controlled pore distribution

These adaptability characteristics make the system suitable for multi-industry deployment.

Perforated Plate Composite Mesh Cartridges
Perforated Plate Composite Mesh Cartridges

Material & Structural Engineering

These filtration cartridges are typically manufactured using:

  • Stainless steel (SS304, SS316, SS316L) for corrosion resistance
  • Multi-layer wire mesh + perforated plate hybrid structures
  • Cylindrical, pleated, or conical geometries depending on system design
  • Reinforced sintered assemblies for high-load environments

Engineering advantages include:

  • High compressive strength under pressure differential conditions
  • Excellent corrosion resistance in chemical environments
  • Strong deformation resistance under thermal cycling
  • Flexible OEM customization for system integration

The perforated plate acts as a structural frame, while the mesh system ensures filtration precision, creating a balanced engineering solution.

Why Choose a Professional Supplier

The performance of composite mesh cartridges depends heavily on manufacturing precision.

A professional supplier ensures:

  • Accurate perforation diameter and spacing control
  • Stable mesh layering and alignment during assembly
  • Controlled sintering temperature for uniform bonding strength
  • Strict quality control for permeability consistency

In addition, advanced manufacturers offer:

  • OEM customization for different system pressures and flow rates
  • Material selection based on chemical compatibility requirements
  • Engineering support for filtration system optimization

This ensures long-term stability in critical industrial applications.

Perforated Plate Composite Mesh Cartridges
Perforated Plate Composite Mesh Cartridges
Perforated Plate Composite Mesh CartridgesPerforated Plate Composite Mesh Cartridges
Perforated Plate Composite Mesh Cartridges
Perforated Plate Composite Mesh Cartridges
Perforated Plate Composite Mesh Cartridges

Frequently Asked Questions About Perforated Plate Composite Mesh Cartridges

What is a perforated plate composite mesh cartridge?

It is a hybrid filter element combining a perforated metal support structure with mesh or sintered mesh layers for high-strength, precision filtration.

Sintering permanently bonds mesh layers together, improving structural rigidity and preventing deformation under pressure.

Perforated metal provides structural support and flow channels, while mesh provides fine particle filtration.

Service life depends on application conditions, but composite sintered structures are reusable and significantly longer-lasting than disposable filters due to cleanability and mechanical strength.

Engineering Consultation & OEM Filtration Solutions

We provide full engineering support for industrial filtration systems:

  • OEM / ODM perforated plate composite mesh cartridge design
  • Filtration system optimization consulting
  • Material and structure selection (SS304 / SS316 / alloys)
  • Technical datasheets and performance validation reports
  • Prototype development for system testing

Our goal is to deliver stable, high-strength, application-specific filtration solutions for industrial engineers and procurement teams.

Perforated Plate Composite Mesh Cartridges
Request a Custom Filter Quote

Engineering Summary & Final Advantage Statement

Perforated plate composite mesh cartridges combine structural reinforcement, controlled permeability, and high-efficiency filtration into a single engineered system. Compared to conventional mesh or perforated metal filters, they provide superior mechanical stability, improved filtration consistency, and longer operational lifespan in demanding industrial environments.

For systems requiring high pressure resistance, stable flow behavior, and long-term reusable filtration performance, this composite structure represents one of the most reliable engineering solutions available.

Contact our engineering team for customized filtration design and OEM technical consultation.
